Accessories
Sockets, trolleys, counterweight bases and other accessories for Reid Lifting davit and gantry systems.
TDAVIT Portable Base
Portable counterweight base for TDAVIT systems.

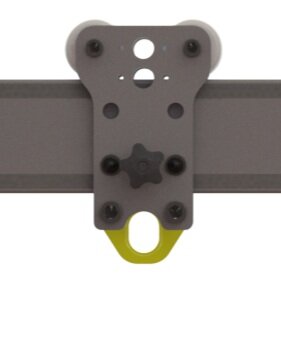

Close Coupled Trolley
Compact trolley for beam-mounted applications.

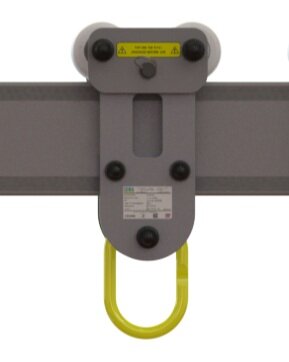

Gated Trolley
Trolley with safety gate for secure load attachment.
Masterlink Trolley (A&B Beam)
Captive beam trolley with masterlink for A&B section beams.
Masterlink Trolley (Rapide)
Beam trolley with masterlink for Porta-Gantry Rapide.
Double Sheave Carrier (Rapide)
Double sheave carrier for wire up to 7mm or rope up to 12mm.
Single Sheave Carrier (Rapide)
Single sheave carrier for wire up to 7mm or rope up to 12mm.
Sockets & Extensions
Mounting sockets and reach extensions for davit systems.
Socket Top Mount
Top mount socket for bolting into existing concrete or steel structures.

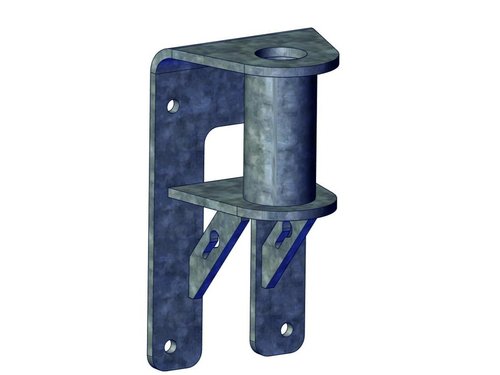

Socket Side Mount
Side mount socket for bolting on the side of structures.
Socket Bridge Mount
Bridge mount socket for flush mount facility in walkways/bridges.

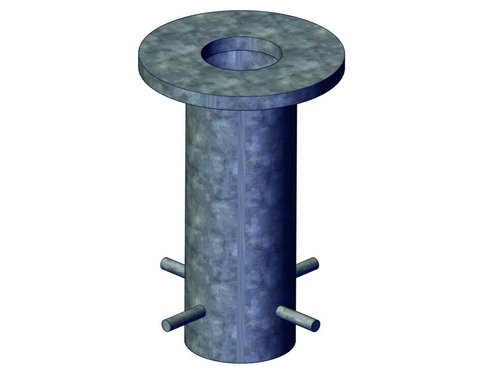

Socket Flush Mount Cast-In
Flush mount socket suitable for casting into concrete.
Socket Flush Mount Cast-In Stainless
Flush mount socket in 316 stainless steel for casting into concrete.
Socket Flush Mount Resin Bond
Flush mount socket for resin bonding into existing concrete.
Socket Flush Mount Inverted
Inverted socket for flush mounting into existing structures.
Socket Pedestal
Top mount pedestal socket for increased height.
Socket Extension
Aluminium socket extension for increased height of lift.
Porta-Base Counterbalance
Five piece aluminium portable base. Compatible with T-Davit and PDQ. WLL 600kg.
Porta-Base H Configuration
Three piece aluminium H-configuration base. Compatible with T-Davit and PDQ. WLL 600kg.
Porta-Base Trench Mount
Trench mount base certified as part of an anchor device to EN795:2012 Type B.
Porta-Base Height Adjustment Kit
Height adjustment kit for Porta-Base Counterbalance basket.
Universal WindUp Jack Legs
Wind up jack leg system providing 250mm height adjustment for uneven ground.
Socket Mounting Options
EN795:2012 certified sockets for permanent davit installation
Top Mount Socket
For mounting on top of concrete or steel structures
- Suitable for full davit range
- EN795:2012 certified
- Secured using 4x M16 anchors
- Comes complete with cover
Side Mount Socket
For mounting on the side of structures
- Suitable for full davit range
- EN795:2012 certified
- Brace plate for thin-walled concrete
- Secured using 4x M16 anchors
Bridge Mount Socket
Designed for steel structures and mesh grating
- Suitable for 65mm REID davits
- EN795:2012 certified
- Fits open mesh grating
- Flush with structural steelwork
Flush Mount / Cast In
For casting into concrete during construction
- Suitable for full davit range
- EN795:2012 certified
- Complete with cover and re-bars
- For resin fixing into existing concrete
Extensions & Pedestals
Additional height and reach for davit systems
Socket Extensions
Provide additional lift height or reach over obstacles, protective rails or walls.
- For use with 65mm REID davits
- EN795:2012 certified up to 1600mm radius
- Lightweight aluminium construction
- Integrated carry handles
Pedestals
Similar to top mount sockets with additional height for reaching over obstacles.
- Suitable for 65mm REID davits
- EN795:2012 certified up to 1600mm radius
- Meets IRATA ICOP up to 1200mm radius
- Maintenance free
